Powder Metallurgy (P/M) Products – Product Description

Overview

Powder metallurgy (P/M) is an advanced metal forming technology that produces precision components from metal powders through pressing and sintering processes. Unlike traditional casting or machining, P/M enables near-net shape manufacturing, significantly reducing material waste and secondary operations. Our powder metallurgy products serve a wide range of industries including automotive, power tools, home appliances, agricultural machinery, and industrial equipment.

Key Advantages of Powder Metallurgy

• Near-Net Shape Forming – Components are produced close to final dimensions, minimizing the need for additional machining.

• High Material Utilization – Over 95% of the raw metal powder is used, reducing scrap and lowering production costs.

• Design Flexibility – Complex geometries, internal splines, keyways, and stepped parts can be produced without costly secondary operations.

• Excellent Dimensional Consistency – Ideal for high-volume production with tight tolerances.

• Self-Lubricating Capability – Porosity can be controlled to retain oil, enabling self-lubricating bearings.

• Tailored Material Properties – Alloy compositions can be adjusted to meet specific hardness, strength, and wear resistance requirements.

Technical Features

Typical Applications

Automotive Industry

• Engine timing sprockets and gears

• Transmission synchronizer hubs

• Connecting rods and camshaft lobes

• Oil pump rotors and bearing caps

• ABS sensor rings

Power Tools

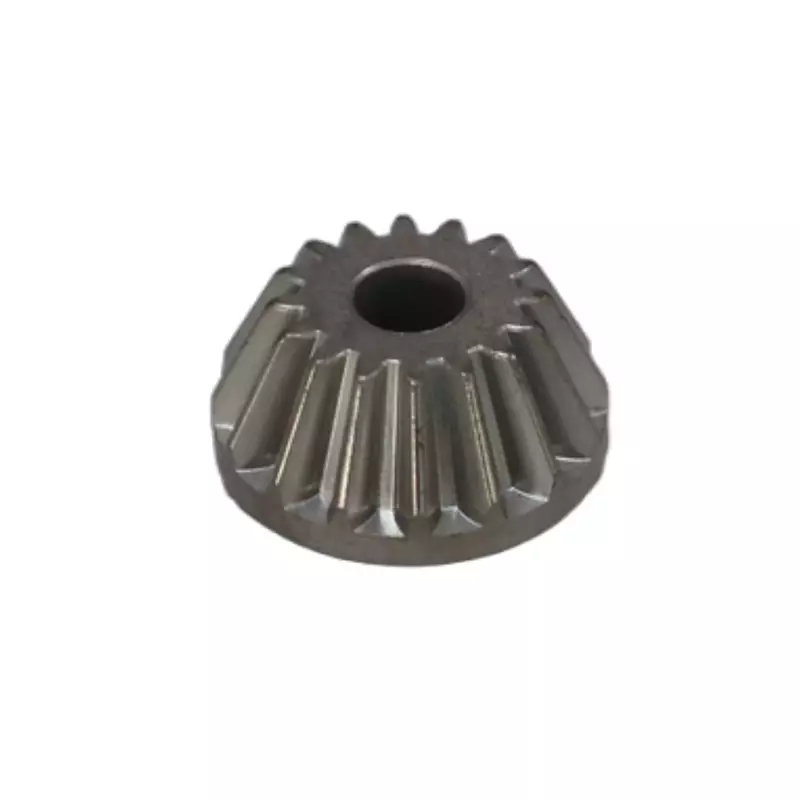

• Gears and bevel gears for drills, grinders, and saws

• Eccentric cams and clutch plates

• Fan blades and locking rings

Home Appliances

• Washing machine pulleys and gears

• Refrigerator compressor connecting rods

• Vacuum cleaner fan parts

Industrial & Agricultural Machinery

• Bushings, bearings, and wear plates

• Sprockets and ratchets

• Hydraulic pump components

Specialty Products

• Soft magnetic components for sensors and relays

• Oil-impregnated self-lubricating bearings

• Porous metal filters and flow restrictors

Manufacturing Process

1. Powder Blending – Metal powders (iron, copper, graphite, etc.) are precisely mixed with lubricants.

2. Compaction – The blended powder is pressed into a green compact using high-pressure tooling.

3. Sintering – Green compacts are heated in a controlled atmosphere furnace to bond particles metallurgically.

4. Secondary Operations (Optional) – Sizing, coining, heat treatment, machining, or steam treatment to achieve final specifications.

5. Quality Inspection – Dimensional, density, hardness, and performance tests ensure compliance with customer drawings.

Quality Assurance

Our powder metallurgy components are manufactured under strict quality control systems compliant with ISO 9001 and IATF 16949 standards. Each batch is tested for dimensional accuracy, hardness, density, and microstructural integrity using CMM, optical comparators, and metallurgical microscopes.

Why Choose Our Powder Metallurgy Products

With over 20 years of experience in metal powder processing, we deliver consistent, high-density, precision-engineered components that reduce your total manufacturing cost. Whether you need high-volume automotive parts or custom-designed structural components, our technical team works closely with you to optimize the design for powder metallurgy manufacturing.

Customization Available

• Material composition tailored to your mechanical property requirements

• Custom tooling design and prototyping

• Heat treatment and surface finishing options

• Secondary machining for critical features

Contact us today to discuss your powder metallurgy project. Provide your drawing or sample, and we will quote within 24 hours.
